GT-ZHZ
Description

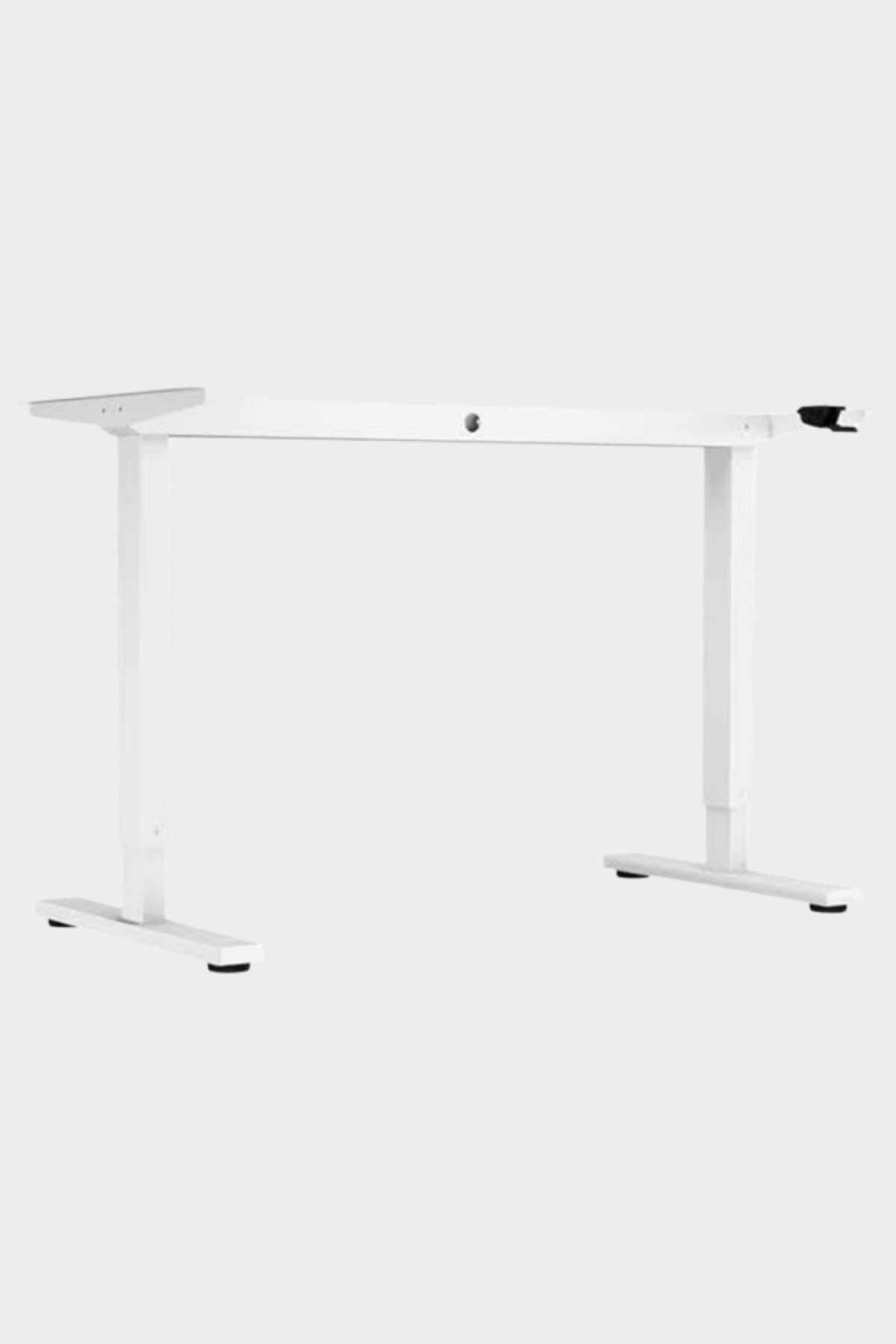

Gt-zhz Height Adjustable Desk Frame
GT-ZHZ is a professional desk frame mechanism that combines a pneumatic lifting system, an axial locking mechanism, and full synchronization features. You can gently touch the desktop to raise it to your desired height and lock it in place. Thanks to its foldable leg structure, transport and installation are extremely practical. With a 100 kg static load capacity and a powder-coated steel body, it provides long-lasting, durable use in office, home office, and educational environments. It can be adapted to different desk sizes with 1030 / 1250 / 1450 mm width options.

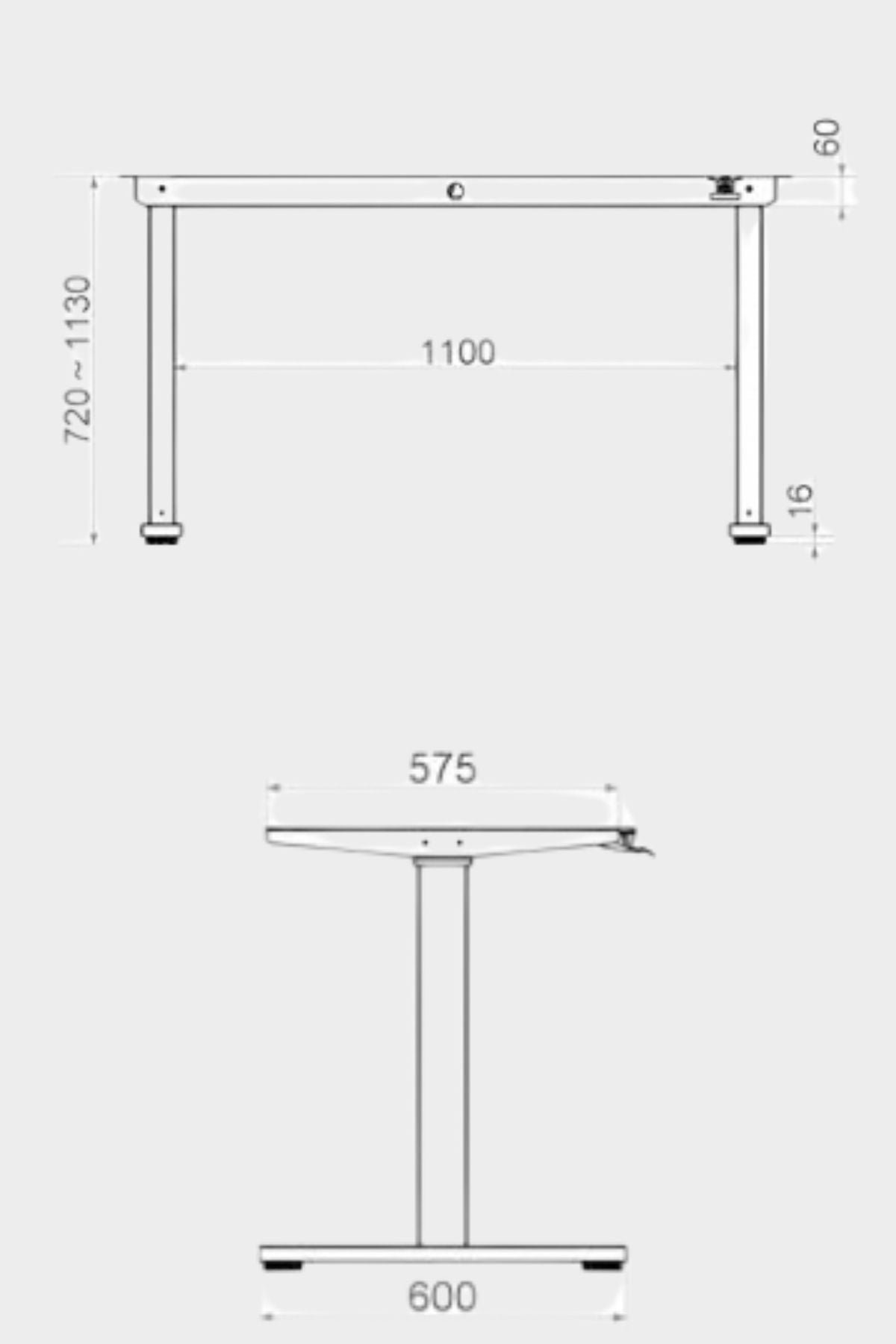

Technical Specifications
| FEATURE | VALUE |
|---|---|
| Model | GT-ZHZ |
| Lifting System | Pneumatic (gas spring assisted) |
| Locking Mechanism | Axial locking |
| Synchronization | Fully synchronized (both columns simultaneously) |
| Static Load Capacity | 100 kg |
| Dynamic Lifting Force | 8–12 kg (depending on standard desktop weight) |

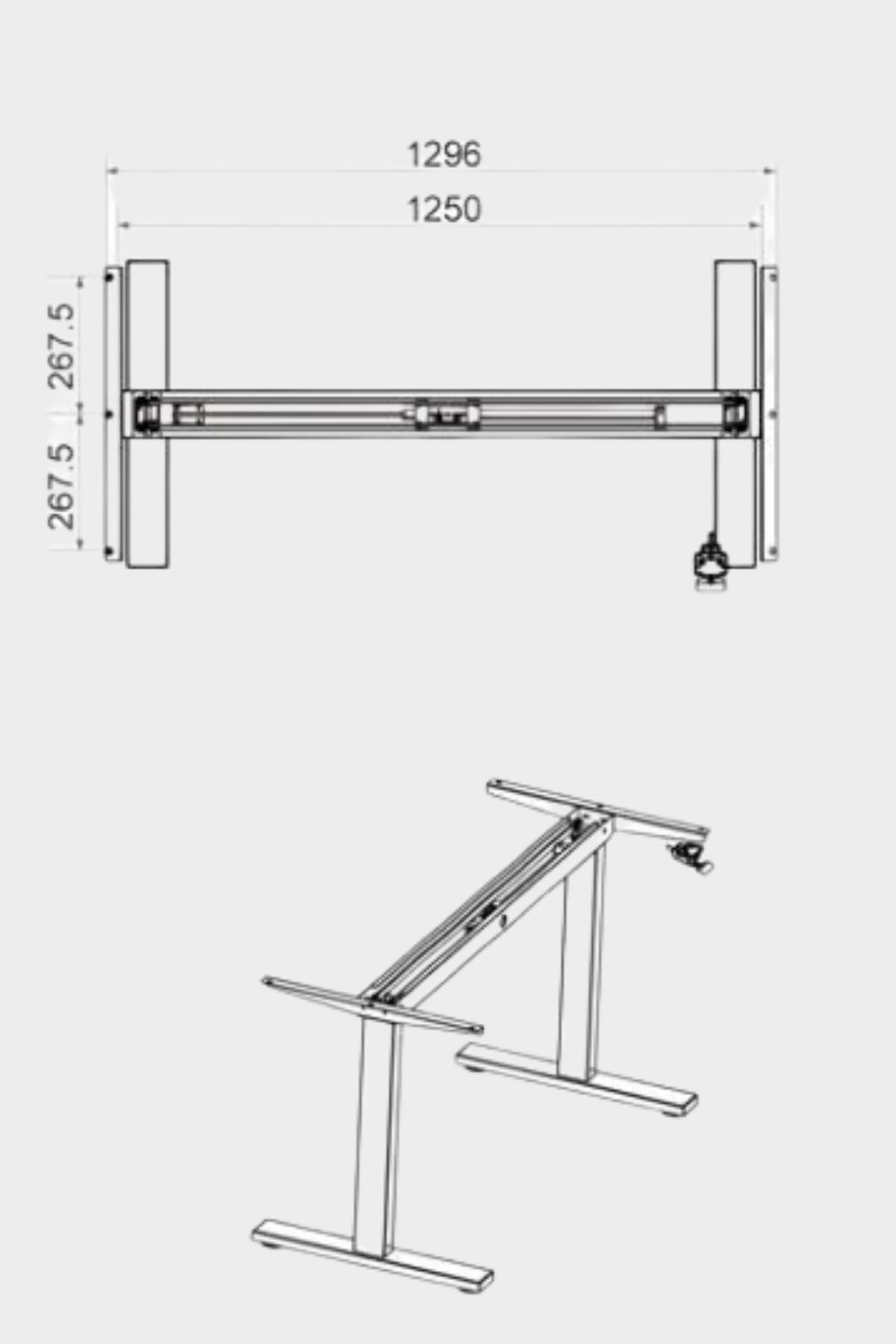

| Width Options (W) | 1030 mm / 1250 mm / 1450 mm |
| Surface Treatment | Powder coated |
| Color Options | Black / White / Grey |
| Transport / Installation | Foldable mechanism — easy transport and assembly |
| Options | Optional custom color · Optional handle |
Key Features
- Pneumatic Lifting System: Easily raise the desk to your desired height with light pressure; no tools or electricity needed.
- Axial Locking Mechanism: The selected height is instantly and securely fixed with the axial lock, preventing unintentional movement.
- Full Synchronization: Both columns move simultaneously and equally, ensuring the tabletop always remains perfectly level.
- Foldable Design: The foldable legs reduce package size for transport and speed up installation.
- 100 kg Static Capacity: Safely supports heavy tabletops and equipment placed on them.
- Three Width Options: 1030, 1250, and 1450 mm options accommodate various workspace requirements.
- Powder-Coated Steel Body: Black, white, or gray powder coating offers both durability and an aesthetic appearance.
- Wide Range of Use: Suitable for use in offices, home offices, educational institutions, and corporate projects.
Frequently Asked Questions
How is the height adjusted?
The GT-ZHZ uses a pneumatic lifting system. You can push the tabletop up or down to your desired height. The axial locking mechanism automatically secures your chosen height. No electricity or tools are required.
What is the axial locking mechanism and how is it used?
Axial locking is a securing system that operates parallel to the piston axis. When you bring the tabletop to your desired height, the lock engages, preventing the table from unintentionally lowering or rising. To change the height, a light force applied to the table temporarily releases the lock.
Does the foldable mechanism make installation difficult?
No, quite the opposite. The foldable design allows the product to take up less space during transport and can be quickly assembled upon reaching its destination. This feature offers great convenience, especially for institutions that frequently move between different offices or classrooms.
Which width option should I choose?
You can choose based on your tabletop size: 1030 mm for compact single workspaces, 1250 mm for standard office desks, and 1450 mm for professional environments requiring a larger work surface.
Is only the mechanism sold, or is the tabletop included?
The GT-ZHZ is sold as a frame mechanism only, without a tabletop. It is used in conjunction with an existing tabletop or a custom-sized one. For detailed information about tabletops and connection parts, please contact us via the Payanda Metal contact page.
Do you have other models of height-adjustable desk mechanisms?
Yes. You can explore our wide range of products, including electric, pneumatic, and manual lifting mechanisms, in our Height Adjustable Desk Frames collection.
Quality Guarantee
At Payanda Metal, all height-adjustable desk mechanisms we offer undergo rigorous quality control before delivery. Our products are manufactured according to industrial standards, and you can contact us for after-sales support and technical consultation services.
Customization Options
Our products are manufactured in standard sizes, but can also be produced in different dimensions and configurations for your special projects and designs.
- Height / Width / Depth: Varies by product
- Load Capacity: Stated per product
- Custom Size Production: Available — Please contact us for a quote
- Compatible products: We have options for all products including wood, glass, marble, MDF, etc.
Delivery & Order Information
At Payanda Metal, we prioritize transparency and reliability in our order and delivery processes.
- Ordering Method: Quote form via website or direct contact
- Production Time: Determined by order quantity and product specifications
- Delivery Commitment: A clear delivery date is provided at the time of order
- Shipping / Delivery: Domestic and international delivery options are available
- Dealer Network: Also available through authorized dealer points throughout Turkey
- After-Sales Support: Technical support is provided throughout the product's lifespan
